Sigma dp1 Quattro Digital
Camera:

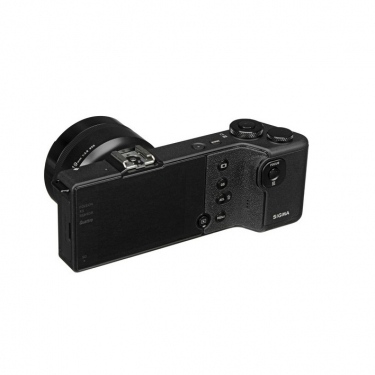

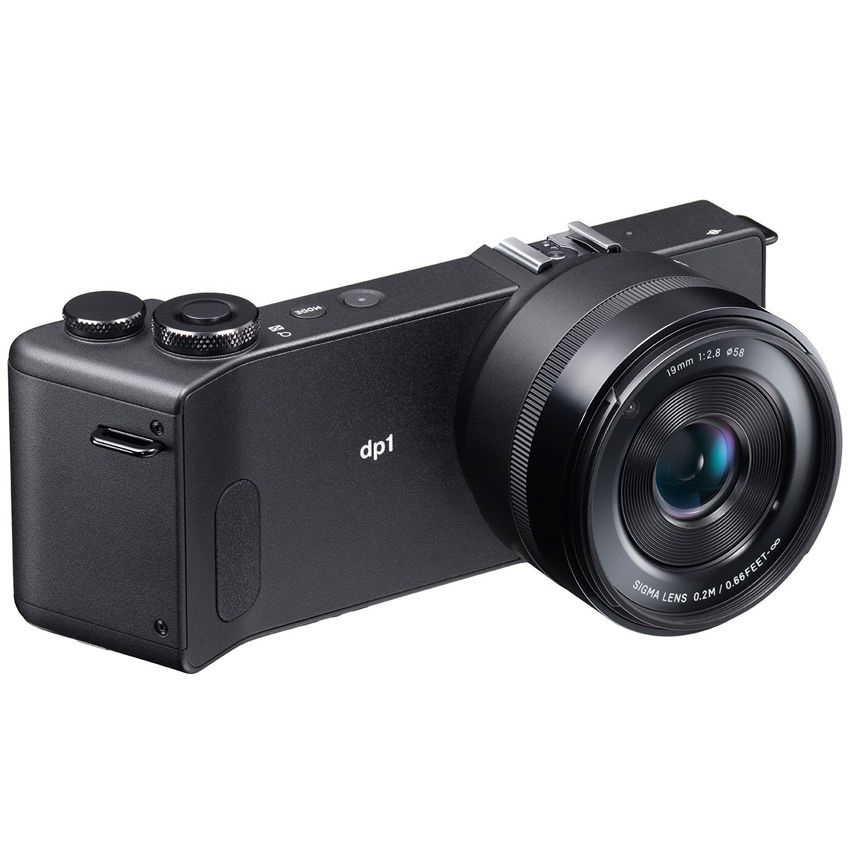

Sigma dp1 Quattro Digital Camera combines the 29MP Foveon X3 Direct Image
Sensor with the TRUE III image processing engine to create high quality images
with an equivalent resolution of 39 megapixels due to the unique sensor design.
It is equipped with a 19mm lens that on an APS-C camera has an 35mm equivalent
focal length of 28mm. It is relatively fast with a maximum aperture of f/2.8,
making it useful in low light. For low light shooting, the camera has an ISO
sensitivity range of 100-6400 in 1/3 steps and it has P/S/A/M shooting modes for
full control over your exposure.
This camera utilizes the latest generation of this technology, named Quattro due
to the 1:1:4 ratio of the pixel layers, with 20MP on the top layer and 4.9MP on
each of the bottom two. This simultaneously reduces file size and increases
resolution, making the camera faster and lowers the power consumption. This
speed increase is also due to the third generation Three-layer Responsive
Ultimate Engine.
The processor is optimized for handling the complex image data recorded by the
sensor and produces high quality imagery. Additionally, with a 9-blade diaphragm
it will produce smooth out-of-focus areas at any aperture.
Sigma dp1 Quattro Digital Camera
Features: Sigma dp1 Quattro Digital Camera
29MP Foveon X3 Quattro CMOS Image Sensor
TRUE III Image Processing Engine
19mm f/2.8 Lens (35mm Equivalent: 28mm)
3.0-inch 920k-dot TFT LCD Screen
ISO Range: 100-6400 in 1/3 Steps
RAW Image Capture
Max RAW Resolution of 5,424 x 3,616
Contrast Detection Autofocus
Manual Focus Ring
P/S/A/M Exposure Control
Specifications: Sigma dp1 Quattro Digital Camera
Pixels Actual: 33 Megapixel
Effective: 29 Megapixel
Sensor: APS-C (23.5 x 15.7 mm) Foveon
Bit Depth: 14-Bit
File Formats: Still Images: JPEG, RAW
Max Resolution: 5424 x 3616
Optics
Lens: 9 elements in 8 groups
EFL: 19mm (35 mm equivalent: 28mm)
Aperture: f/2.8 to f/16
Filter Thread: 58mm
Focus Range: Normal: 7.87" (20 cm) - Infinity
Exposure Control
ISO Sensitivity: 100-6400
Shutter: 30 - 1/2000 Second
Exposure Metering: Center-weighted, Evaluative, Spot
Exposure Modes Modes: Aperture Priority, Manual, Program, Shutter Priority
Compensation: -3 EV to +3 EV (in 1/3 EV Steps)
White Balance Modes: Auto, Color Temperature, Custom, Daylight, Flash,
Fluorescent, Incandescent, Overcast, Shade
Self-Timer: 10 Sec, 2 Sec
Interval Recording: Yes
Flash
Built-in Flash: No
External Flash Connection: Hot Shoe
Memory
Memory Card Type: SDXC, SDHC, SD
Screen: 3" LCD (920,000 pixels)
Wi-Fi: None
Power: Battery 1x BP-51 Rechargeable Lithium-Ion Battery Pack
AC Power Adapter: SAC-6 (Optional)
Dimensions (WxHxD): 6.4 x 2.6 x 3.2" / 161.4 x 67.0 x 87.1 mm
Weight: 14.991 oz / 425 g
Kit Contents
Sigma dp1 Quattro Digital Camera
User Operating Instructions Manual
